RME Digiface USB 66-channel ADAT to USB Audio Interface

SKU: DIGIFACEUSB

$959.00
Shipped with 24 hours when in stock.
Share:

or 4 payments of $239.75 with Info

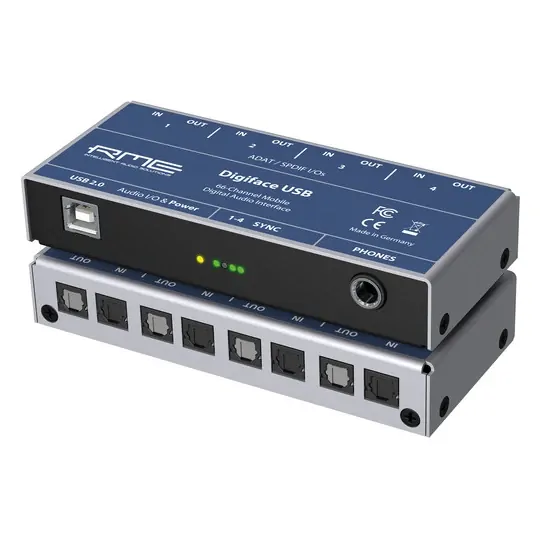

The RME Digiface USB is a portable USB 2.0 audio interface designed to quickly and efficiently transfer 24-bit / 192 kHz digital audio data in ADAT and S/PDIF format to Windows and Mac computers.




The RME Digiface USB is a portable USB 2.0 audio interface designed to quickly and efficiently transfer 24-bit / 192 kHz digital audio data in ADAT and S/PDIF format to Windows and Mac computers. Lightweight, compact, and bus-powered, it is well suited for mobile recording/mixing applications or remote monitoring solutions.

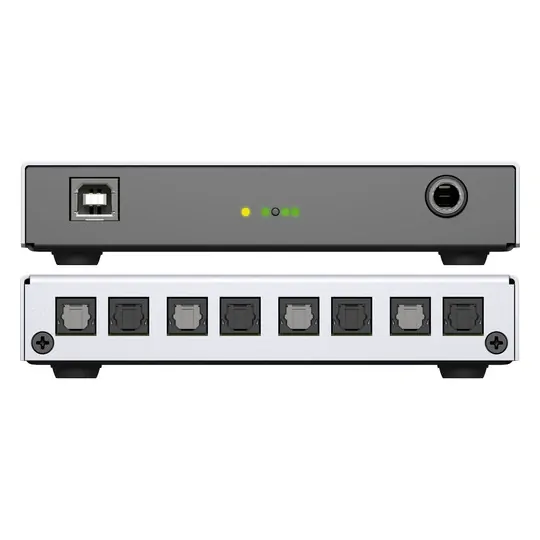

The Digiface USB offers four optical ADAT / S/PDIF I/Os and a high-quality analog line/phone stereo output via a 1/4" TRS jack, for a total of 32 inputs and 34 outputs when using ADAT optical. It also comes with the real-time mixer software TotalMix which allows you to mix and route all inputs and playback channels simultaneously, to any hardware outputs. The software features a dedicated Control Room section with Talkback, Main/Phones, fader groups, mute groups, complete remote controllability via Mackie or OSC protocol, and more.

The included DIGICheck utility software provides a suite of tools to test, measure, and analyse digital audio streams with a high-precision peak/RMS level meter, a spectral analyser, a vector audio scope, and more.



Features:

• Sample rates: 28 kHz to 200 kHz

• 66 channels: 32 in / 34 out

• 4x pairs of ADAT / S/PDIF optical I/O ports

• Standard speed: 32 channels, 24-bit/up to 48 kHz, record/playback via ADAT optical

• Double speed: 16 channels, 24-bit/96 kHz, record/playback via ADAT optical (S/MUX)

• Quad speed: 8 channels, 24-bit/192 kHz, record/playback via ADAT optical (S/MUX4)

• Each single optical port can use either ADAT (up to 8 channels) or S/PDIF (stereo)

• ADAT and S/PDIF I/Os can be used simultaneously

• One analog line/headphone stereo output, provides separate output for independent sub mix

• TotalMix for latency-free sub mixes and ASIO Direct Monitoring

• Slave and master clock modes – Internal, ADAT input, S/PDIF input

• Buffer sizes/latencies 32 to 8192 samples, selectable

• Automatic and intelligent master/slave clock control

• SteadyClock: Jitter-immune, super-stable digital clock

• DIGICheck DSP: Level meter in hardware with peak and RMS calculation



For more information, please visit the RME website.





For full specifications, please visit the manufacture's website.



SKU DIGIFACEUSB
Barcode # 4260123362287
Brand RME
Type Genuine
